YS-K SERIES Stationary Air Cylinders
| |
Lightweight and compact style pneumatic cylinders with closed centers. |
Special Features
- Compact and lightweight design (low profile for clearance)
- Versatile for many workholding applications
- Easy setup and installation for MC applications
- Alloy body
- Low maintenance
Specifications
| Model |
Unit |
YS1415K |
YS1820K |
YS2220K |
| Piston Stroke |
in. |
0.591 |
0.787 |
0.787 |
| Max. Air Pressure |
psi |
101 |
101 |
101 |
| Max. Hyd. Pressure |
psi |
217 |
217 |
217 |
| Max. Draw Bar Pull Force at Air Pressure .6 MPa |
kN (kgf) |
8.1 (826) |
14.6 (1489) |
20.8 (2121) |
| Max. Draw Bar Push Force at Air Pressure .6 MPa |
kN (kgf) |
8.5 (867) |
15.1 (1540) |
21.4 (2182) |
| Max. Draw Bar Pull Force at Hydraulic Pressure 1.5 MPa |
kN (kgf) |
20.1 (2050) |
36.5 (3722) |
51.9 (5292) |
| Max. Draw Bar Push Force at Hydraulic Pressure 1.5 MPa |
kN (kgf) |
20.8 (2121) |
37.7 (3844) |
53.6 (5466) |
| Net Weight |
lbs. |
33 |
48 |
85 |

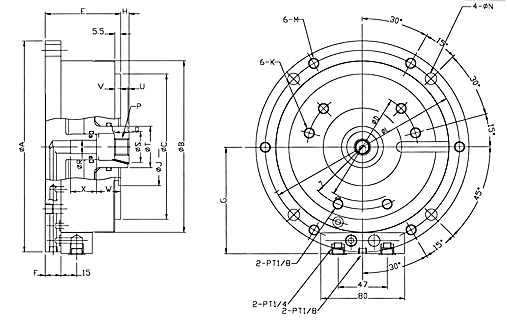

Dimensional Drawings
Dimensions
| Model |
YS1415K |
YS1820K |
YS2220K |
| Diameter A(h7) |
7.992 |
9.764 |
11.811 |
| Diameter B |
6.497 |
8.268 |
10 |
| Diameter C(h7) |
5.512 |
6.693 |
8.661 |
| Diameter D |
4.126 |
5.252 |
6.748 |
| E |
2.835 |
3.622 |
3.937 |
| F |
0.591 |
0.591 |
1.591 |
| G |
4.055 |
4.941 |
5.807 |
| H max. |
0.472 |
0.787 |
0.394 |
| H min. |
-0.118 |
0.000 |
-0.393 |
| Diameter J |
2.953 |
3.937 |
3.937 |
| K |
M10x17 |
M12x24 |
M16x24 |
| Diameter L |
7.283 |
9.055 |
11.024 |
| M |
M10 |
M10 |
M12 |
| N |
0.433 |
0.433 |
0.512 |
| P |
M16x2.0 |
M18x2.5 |
M22x2.5 |
| Q |
0.709 |
1.201 |
1.122 |
| Diameter R |
0.512 |
0.512 |
0.512 |
| Diameter S |
|
1.339 |
1.417 |
| Diameter T |
1.575 |
1.575 |
1.772 |
| U |
|
0.512 |
0.492 |
| V |
0.079 |
0.394 |
0.472 |
| W |
0.906 |
1.398 |
1.732 |
| X |
0.984 |
1.220 |
1.339 |
| Y |
1.299 |
1.299 |
1.299 |
| Z |
2.374 |
3.150 |
3.740 |
|
