S & SL SERIES Hydraulic Cylinders

  Compact and lightweight, they feature bore sizes up to 20% larger than conventional cylinders. Precision finished piston bores and cool running rotary unions are included for years of trouble-free performance.

Special Features

  • Large Bore
  • Built-in Check Valves and Pressure Relief Values
  • High Speed
  • Long Life and High Endurance
  • Long Piston Stroke
  • Efficient Cooling at High Speeds

S & SL Series Coolant Collectors

COOLANT COLLECTORS DIMENSIONS (Dimensions in Inches)

MODEL CS-S12BN CS-S15BN CS-S18BN CS-S20BN CS-S28BN
A 3.819 4.488 6.063 6.063 9.843
B 3.346 3.780 4.764 5.433
C 1.535 1.535 1.575 2.283 2.047
D 3.228 3.228 3.386 4.016 4.044
E 5.512 5.906 7.480 7.480 11.220
F 3.622 4.016 4.921 4.921
G 1.535 1.535 1.693 2.047 2.343
H 0.945 0.945 1.102 1.181 1.437
I 1.535 1.535 1.693 2.047 2.343
J 0.945 0.945 1.102 1.181 1.437
K 3.307 3.898 5.669 5.669 9.528
L 0.197 0.197 0.197 .0197 0.276
M min. 0.906 0.906 0.906 1.181
N 1.299 1.299 1.299 1.299 1.102
CYL. S1246 S1552 S1875 S2091 S2516
S1246L S1552L S1875L S2091L S2816L

Standard Coolant Collectors (without proximity switch) are also available.


SPECIFICATIONS

MODEL UNIT S1246 S1552 S1875 S2091 S1246L S1552L S1875L S2091L S2816
Bore in. 1.811 2.047 2.953 3.583 1.811 2.047 2.953 3.583 6.496
Piston Stroke in. 0.591 0.866 0.984 1.181 1.260 1.339 1.575 1.575 2.008
Piston Area-Pull Side in.2 13.87 23.27 28.44 36.41 13.87 23.27 28.44 36.41 51.46
Piston Area-Push Side in.2 15.59 25.00 30.63 38.97 15.59 25.00 30.63 38.97 58.34
Max. Draw Bar Pull-Pull Side kN (kgf) 33 (3365) 56 (5710) 69 (7036) 88 (8973) 33 (3365) 56 (5710) 69 (7036) 88 (8973) 91 (9279)
Max. Draw Bar Pull-Push Side kN (kgf) 38 (3875) 60 (6118) 74 (7546) 94 (9585) 38 (3875) 60 (6118) 74 (7546) 94 (9585) 103 (10503)
Max. Operation Pressure psi 570 570 570 570 570 570 570 570 435
Max. Speed rpm 7000 6200 4700 3800 7000 6200 4700 3800 2000
GD 2 kg.m 2 .019 .053 .095 .153 .022 .058 .100 .160 .699
Net Weight lbs. 26.4 37.0 57.3 72.7 28.2 37.4 59.0 73.6 22.2
Oil Leakage* gal./min. 0.79 1.03 1.11 1.19 0.79 1.03 1.11 1.19 1.7

* This oil leakage rate is reached if the cylinder is used at an operating pressure of 427 psi at oil temperature of 122º F.

SPECIFICATION OF PROXIMITY SWITCHES

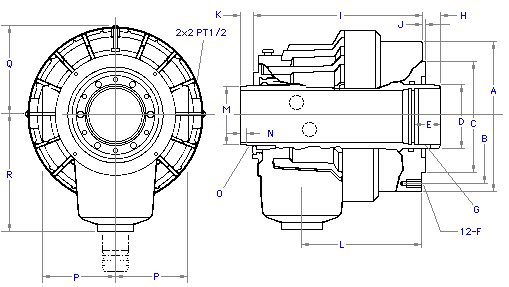

HYDRAULIC CYLINDERS DIMENSIONS (Dimensions in Inches)

MODEL S1246 S1552 S1875 S2091 S1246L S1552L S1875L S2091L
A 6.102 7.480 8.465 9.449 6.102 7.480 8.465 9.449
B 5.118 6.693 7.480 8.465 5.118 6.693 7.480 8.465
C 3.937 5.118 6.299 7.087 3.937 5.118 6.299 7.087
D 2.559 2.756 3.740 4.331 2.559 2.756 3.740 4.331
E 1.181 1.181 1.378 1.378 1.181 1.181 1.378 1.378
F M10 M10 M10 M12 M10 M10 M10 M12
G M55x2.0 M60x2.0 M85x2.0 M100x2.0 M55x2.0 M60x2.0 M85x2.0 M100x2.0
H max. 0.591 0.866 0.984 1.378 1.063 1.142 1.378 1.771
H min. 0 0 0 0 -0.197 -0.197 -0.197 -0.197
I 7.047 7.520 8.858 9.764 7.874 8.189 9.488 10.551
J 0.197 0.197 0.197 0.197 0.197 0.197 0.197 0.197
K max. 1.575 1.850 1.969 2.165 2.244 2.323 2.559 2.953
K min. 0.984 0.984 0.984 0.984 0.984 0.984 0.984 0.984
L 5.315 5.709 6.555 7.205 6.142 6.378 7.185 7.992
M 1.969 2.205 3.189 3.780 1.969 2.205 3.189 3.780
N 0.354 0.354 0.354 0.354 0.354 0.354 0.354 0.354
O M52x1.5 M58x1.5 M84x2.0 M99x2.0 M52x1.5 M58x1.5 M84x2.0 M99x2.0
P 2.992 3.386 3.976 4.331 2.992 3.386 3.976 4.331
Q 3.937 4.331 4.764 5.256 3.937 4.331 4.764 5.256
R 4.528 5.118 6.299 7.283 4.528 5.118 6.299 7.283
