HW SERIES Four-Jaw Lever Type Power Operated Chuck with Closed Center



Two pairs of two jaws self center independent of each other. The HW Series is suitable for square bar and other unusually shaped workpieces.

Special Features

  • Long Stroke
  • HW-08 Can Be Operated by Exclusive Cylinder HYW-1220
  • 2+2 Jaws Self Centering
  • HW-10, 12 and 15 Can Be Operated by Exclusive Cylinder HYW-1225.

Model HW Series Chucks are manufactured from high grade alloy steel. All sliding surfaces are hardened and ground to assure consistent accuracy and performance.

Lubrication nipple in each base jaw.

Master Jaw Serration: Chuck size 6" to 10": 1.5mm x 60°

Mounting: Direct mounting to fit ASA B5.9 type A (interchangeable with DIN 55026).

Standard Equipment: Chuck assembled with adapter, chuck mounting bolts, soft top jaws, T-nuts and jaw mounting bolts with wrench, draw nut wrench.


SPECIFICATIONS

MODEL UNIT HW-08 HW-10 HW-12 HW-15
Jaw Stroke (Diameter) in. 0.520 0.630 0.630 0.669
Plunger Stroke in. 0.669 0.866 0.866 0.984
Max. Draw Bar Pull kN (kgf) 16.5 (1683) 23 (2345) 23 (2345) 28 (2855)
Max. Gripping Force kN (kgf) 56 (5710) 84 (8565) 84 (8565) 108 (11013)
Max. Speed rpm 3000 2000 1500 1200
Net Weight (1) lbs. 51 110 128 260
GD 2 kg.m 2 .153 .500 .700 2.250
Matching Cylinder YW1220 YW1225 YW1225 YW1225
Matching Hard Top Jaw
Matching Soft Top Jaw SB08B1Q SB10A2Q SB10A2Q SB15A2Q

(1) With top jaws.

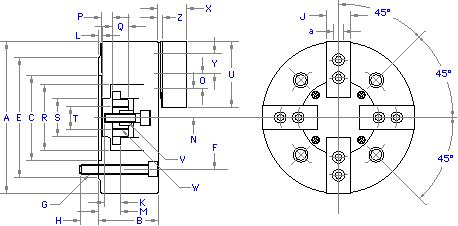

DIMENSIONS (Dimensions in Inches)

MODEL HW-08 HW-10 HW-12 HW-15 MODEL HW-08 HW-10 HW-12 HW-15
A 8.268 10.630 11.969 15.000 N min. 1.768 2.205 2.205 2.736
B 3.583 4.331 4.331 5.315 O max. 0.955 1.103 1.931 2.618
C (H6) 6.693 4.724 4.724 7.677 O min. 0.364 0.512 0.512 0.610
D 0.197 0.217 0.217 0.295 P 0.689 0.787 0.787 0.728
E 7.874 8.661 11.220 Q 0.669 0.787 0.787 0.945
F 5.252 6.693 6.693 9.252 R 3.228 4.055 4.055 5.118
G M12 M16 M16 M20 S 1.811 2.283 2.283 3.071
H 0.787 0.945 0.945 1.181 T 1.339 1.654 1.654 2.165
J 1.220 1.575 1.575 1.968 U 3.543 4.331 4.331 5.079
K 1.142 1.220 1.220 2.165 V M14x2 M16x2 M16x2 M20x2.5
L max. 0.413 0.709 0.709 1.024 W M35x1.5 M42x1.5 M42x1.5 M55x2.0
L min. -0.256 -0.157 -0.157 -0.039 X 1.535 1.772 1.772 2.087
M max. 1.555 1.929 1.929 2.343 Y 0.787 1.181 1.181 1.496
M min. 0.886 1.063 1.063 1.358 Z 0.079 0.197 0.197 0.197
N max. 2.020 2.520 2.520 3.871 a 0.472 0.630 0.630 0.630
