FG SERIES Wheel Chucks


Three-jaw wheel chucks for motorcycle and automobile as well as six-jaw wheel chucks for truck applications. Efficient, high speed turning of aluminum wheels.

Special Features

  • High Speed
  • Chuck Body Balanced from Factory (w/i 3 grams at OD)
  • Mirror Finish Capabilities
  • Seating Confirmation Feature Standard
  • Strong/High Endurance
  • Strong Axial Clamping Method
  • Easy Set-up and Change-Over

SPECIFICATIONS

UNIT

FG52M FG50L FG62L FG56L
Application Motorcycle Automobile Truck Automobile (Enhanced)
Wheel Size Range in. 12 ~ 19 13 ~ 18 17.2 ~ 22.5 13 ~ 20
Max Material Size in. 19.8" 22.1"
Max. Jaw Stroke in. 1.063 1.063 1.063 1.063
Max. Draw Bar Pull Force lbs. 4630 6600 6600 6730
Max. Gripping Force lbs. 4300 6280 5950 6396
Net Weight lbs. 287 213 312 255
Max. Speed rpm 2500 3000 2500 3000
GD 2 lbs.* ft 2 86 56 133 315
Matching Cylinder YG-204 YG-204 YG-204 YG-204



Work Size

MODEL 12" 13" 14" 15" 16" 17" 18" 19" 20" 21.5" 22.5"
FG52M X X X X X X X X
FG50L X X X X X X X
FG62L X X X X X X
FG56L X X X X X X X X

DIMENSIONS (Dimensions in Inches)

FG52M Dimensional Drawing

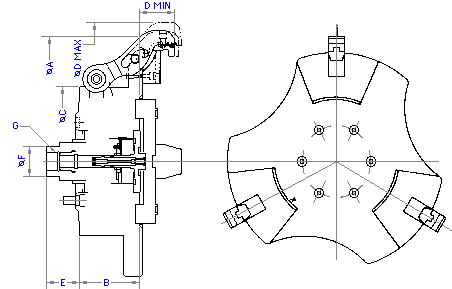

FG50L/FG62L Dimensional Drawing

MODEL FG52M FG50L FG62L
A 20.669 20.079 24.409
B 5.512 5.512 5.748
C 14.567 12.992 17.323
D max. (1) 25.945 24.567 25.984
D min. 5.315 2.953 2.913
E max. 2.559 2.559 2.559
E min. 1.496 1.496 1.496
F 2.677 2.677 2.677
G M40x1.5 M40x1.5 M40x1.5
