BL200 & BLT SERIES Lever Style Power Chucks
| Two and three-jaw lever style power chucks are ideal for applications requiring extra long jaw stroke. These deliver consistent accuracy and repetitive chucking. |
Special Features
- Large Thru-Hole
- Extra Long Stroke
- Suitable for Automated Systems
- Compact and Lightweight
- Direct Mount
- High Accuracy and High Endurance
Model BL200 & BLT-Series Chucks are manufactured from high grade alloy steel. All sliding surfaces are hardened and ground to assure consistent accuracy and performance.
Lubrication nipple in each base jaw.
Master Jaw Serration:
Chuck size 6" to 12": 1.5mm x 60°
Mounting:
Direct mounting to fit ASA B5.9 type A (interchangeable with DIN 55026).
Standard Equipment:
Chuck assembled with adapter, chuck mounting bolts, soft top jaws, T-nuts and jaw mounting bolts with wrench, draw nut wrench.
SPECIFICATIONS
| MODEL |
UNIT |
BL-206 |
BL-208 |
BL-210 |
BL-212 |
BLT206 |
BLT208 |
BLT210 |
BLT212 |
| Open Center (Diameter) |
in. |
1.102 |
1.772 |
2.087 |
2.480 |
1.102 |
1.772 |
2.087 |
2.480 |
| Jaw Stroke (Diameter) |
in. |
0.787 |
0.984 |
1.181 |
1.378 |
0.787 |
0.984 |
1.181 |
1.378 |
| Plunger Stroke |
in. |
0.591 |
0.748 |
0.866 |
0.984 |
0.591 |
0.748 |
0.866 |
0.984 |
| Max. Draw Bar Pull Force |
kN (kgf) |
27.9 (2845) |
41.1 (4191) |
53.8 (5486) |
69.3 (7067) |
18.6 (1897) |
27.4 (2794) |
35.9 (3661) |
46.2 (4711) |
| Max. Gripping Force |
kN (kgf) |
31.2 (3182) |
49 (4997) |
63 (6427) |
80.4 (8199) |
20.8 (2121) |
32.7 (3334) |
42 (4283) |
53.6 (5465) |
| Max. Speed |
rpm |
4500 |
3300 |
3000 |
2200 |
4500 |
3300 |
3000 |
2200 |
| Net Weight(1) |
lbs |
30.8 |
55.0 |
94.6 |
165.0 |
|
|
|
|
| GD 2 |
kg.m 2 |
.043 |
.198 |
.306 |
.918 |
.042 |
.193 |
.290 |
.903 |
| Matching Cylinder |
S1246 |
S1552 |
S1875 |
S2091 |
S1246 |
S1552 |
S1875 |
S2091 |
| Matcing Hard Top Jaw |
HB06B1 |
HB08A1 |
HB10A1 |
HB12N1 |
HB06B1 |
HB08A1 |
HB10A1 |
HB12N1 |
| Matching Soft Top Jaw |
SB06B1 |
SB08B1 |
SB10B1 |
SB12N1 |
SB06B1 |
SB08B1 |
SB10B1 |
SB12N1 |
(1)With soft top Jaw

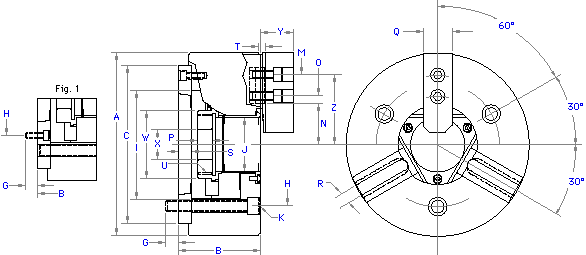

DIMENSIONS (Dimensions in Inches)
| MODEL |
BL-206A05 |
BL-208A06 |
BL-210A06 |
BL-210A08 |
BL-212A06 |
BL-212A08 |
| A |
6.496 |
8.268 |
10.000 |
10.000 |
11.969 |
11.969 |
| B |
3.819 |
4.409 |
5.394 |
5.118 |
6.220 |
5.945 |
| C |
3.250 |
4.188 |
4.188 |
5.501 |
4.188 |
5.501 |
| G |
0.551 |
0.709 |
0.728 |
0.984 |
0.728 |
0.984 |
| H |
4.126 |
5.252 |
5.252 |
6.748 |
5.252 |
6.748 |
| I |
2.756 |
3.622 |
4.016 |
4.016 |
4.724 |
4.724 |
| J |
1.102 |
1.772 |
2.087 |
2.087 |
2.480 |
2.480 |
| K |
3-M10 |
3-M12 |
3-M16 |
3-M16 |
3-M16 |
3-M16 |
| M |
0.787 |
0.984 |
1.181 |
1.181 |
1.181 |
1.181 |
| N max. |
1.516 |
2.087 |
2.461 |
2.461 |
2.933 |
2.933 |
| N min. |
1.122 |
1.594 |
1.870 |
1.870 |
2.244 |
2.244 |
| O max. |
0.660 |
0.818 |
1.034 |
1.034 |
1.507 |
1.507 |
| O min. |
0.364 |
0.463 |
0.443 |
0.443 |
0.502 |
0.502 |
| P max. |
0.984 |
0.787 |
0.748 |
0.472 |
1.307 |
1.031 |
| P min. |
0.394 |
0.039 |
-0.118 |
-0.394 |
0.3231 |
0.047 |
| Q |
1.024 |
1.378 |
1.575 |
1.575 |
1.969 |
1.969 |
| R |
0.472 |
0.551 |
0.630 |
0.630 |
0.827 |
0.827 |
| S |
0.945 |
1.260 |
1.575 |
1.575 |
1.496 |
1.496 |
| T |
0.079 |
0.079 |
0.079 |
0.079 |
0.118 |
0.118 |
| U max. |
M38x1.5 |
M55x2.0 |
M65x2.0 |
M65x2.0 |
M75x2.0 |
M75x2.0 |
| W |
1.772 |
2.480 |
2.874 |
2.874 |
3.268 |
3.268 |
| X |
0.787 |
1.181 |
1.772 |
1.772 |
1.969 |
1.969 |
| Y |
1.142 |
1.535 |
1.693 |
1.693 |
2.047 |
2.047 |
| Z |
2.598 |
3.740 |
4.330 |
4.330 |
4.370 |
4.370 |

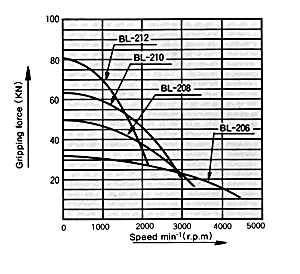

Gripping Characteristic Graph
|
